Specifications

8" Stroke Height Range

- 1 Lever Chair Height:

Nylon Base: 20" to 28".
Chromed Steel: 20" to 28".
Deluxe Aluminum: 19" to 27".

- 2 Lever Chair Height:

Nylon Base: 21" to 29".
Chromed Steel: 21" to 29".
Deluxe Aluminum: 20" to 28".

- 3 Lever Chair Height:

Nylon Base: 21" to 29".
Chromed Steel: 21" to 29".
Deluxe Aluminum: 20" to 28".

10" Stroke Height Range

- 1 Lever Chair Height:

Nylon Base: 24" to 34".
Chromed Steel: 25" to 35".
Deluxe Aluminum: 24" to 34".

- 2 Lever Chair Height:

Nylon Base: 25" to 35".
Chromed Steel: 26" to 36".
Deluxe Aluminum: 25" to 35".

- 3 Lever Chair Height:

Nylon Base: 25" to 35".
Chromed Steel: 26" to 36".
Deluxe Aluminum: 25" to 35".

Nylon Base

No ESD casters
Yes ESD Drag chain

Chromed Steel & Deluxe Aluminum Base

Yes ESD casters
No ESD Drag chain

Seat Width

Seat: 21.5" Wide, 19" Deep. Waterfall Front. Fully Ergonomic.
Back: 15.5" High. Comfortable Lumbar Support.
Base: 5 Leg.
Casters: 60mm.
Weight Capacity: 450#.
Footring Diameter: 20".

Most BenchPro™ cleanroom seating meets or exceed ISO Class 3. View Complete Testing Results and standards information.

General Information: The higher the Class number, the more particulate is acceptable. i.e. Class 100,000 allows 100,000 particles, where Class 3 allows 3.

BenchPro™ seating products have been independently tested to the following cleanroom standards:

ISO 14644-1 – Classification of Air Cleanliness.
ISO 14644-3 – Test Methods.
IES-RP-CC006.2 – Testing Cleanrooms.
BenchPro™ cleanroom chair components are wiped down with alcohol prior to packaging, then double bagged and boxed.

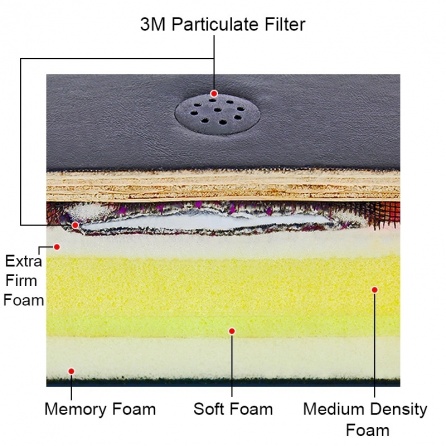

Foam Construction: 2.7” Thick Five density foam set. The top layer is Memory Foam for exceptional comfort, under that is soft foam to maximize comfort for lighter weight persons, then Medium Density followed by extra firm foam for the heavier persons. Under this is a special firm foam with a cut-out pattern in the center to protect the exclusive internal 3M™ filter system from excessive compression.

Filtration: BenchPro™ Cleanroom Seating Products Exclusively Use 3M Filters for Absolute Dependability.

Ease of Assembly

Tall Chairs Assembly Instructions

3 LEVER CONTROL

Assembly Below

1. No tools are required. Unpack the box. Insert the casters into the base. Turn the base over.

2. After inserting the gas cylinder into the base, slide the footring up the gas cylinder and secure the footring.

3. Place the cushion and steel plate over the top of the gas cylinder.

4. Remove the knob on the back. Reinsert the knob. Tighten.

5. Remove the knob on the bottom of the seat plate. Reinsert the knob and washers. Tighten.

1 LEVER CONTROL

Assembly Below

1. No tools are required. Unpack the box. Insert the casters into the base. Turn the base over.

2. After inserting the gas cylinder into the base, slide the footring up the gas cylinder and secure the footring.

3. Place the cushion and steel plate over the top of the gas cylinder.

4. Insert back bar through the steel plate and adjust the back bar at desired height. Tighten.

5. Insert the plastic pin onto the back bar.

Brand Comparison

Industrial Grade Chair Comparisons

Based on Order of 10

Description	*BenchPro	*Gibo Kodama	*BEVCO	*Biofit	Indl Seating	ULINE
TALL CHAIRS
Polyurethane	$170	$374 (alum base)	$300	$411	$213	$215
Polyurethane ESD	-	-	$514	-	-	$455
Fabric	$215	$395	$330	$450	$229	$305
Fabric ESD	$235	$515 (Short chair, alum base)	$420	$609	$237	$420
Vinyl	$220	$404 (Short chair, alum base)	-	-	$235	$365
Vinyl ESD	$263	$550 (alum base)	$670	-	$282	-
Cleanroom	$261	-	$548	$518	$279	-

WARRANTY: 10 Years Unconditonal.

LEAD TIME: 5 Days.

*American producer.

January 2023

ANSI/BIFMA Features

3M Industrial Particulate Filters (Exclusive).
Meets and Exceeds All ANSI/BIFMA Standards.
Independantly Tested to Stability Standard
Unconditional 10 Year Warranty.

Stainless Steel Chair Controls. (Exclusive). View Video.
3 Layer Foam Seat Cushions to Extended Comfortable Life.
Newest Ergonomic Designs for “All Day” Comfort.

Chair Quality

BenchPro™ offers a 10-year unconditional warranty on our seating . . . .because we can.

We make sure the chairs are well built, and the fabrics and foams we use will last longer than 10-years of heavy use.

Example: Seat plates (under the seat cushion) are made for sale in at least 10 countries. We have tested each one of these and found them too weak to pass BIFMA and our standards, so we made all the tooling to produce the parts, and make our own. We sell them to a few other quality chair manufacturers.

While other brands have pressed together and crimped connections, ours use better methods and are assembled by welding. These photos show 24 mig spot welds and 2 circular mig welds. Then we powder paint them.

We carry liability insurance. It has never been used!

Chair Warranty

PRINT

Seating Products Warranty

- Frames are warranted to stay as strong as when they were new for 10 years.

- Upholstery, including the foam, fabric and molded wood understructure must remain attractive and in proper working condition for five years. (The exception shall be damage due to customer impacts, burns, stains, cuts, etc.)

- Our bumper-grade chrome will not delaminate, fade, rust or become unattractive for 10 - years.

- Static Control (ESD) properties of our seating must remain within the nationally accepted standards of ANSI/ESDA S20.20, GSA and The ESD Association established and in place at the time of sale, for 10 - years.

- Clean room seating must maintain the standards of a Class 100 for 10 - years.

Exceptions: Our seating warranty is extended to the original purchaser and is prorated when the chairs are used in multiple-shift operations.

Service: Call BenchPro™ at 888-700-9888 or email info@benchpro.com. Customers only have the obligation to report the problem and BenchPro™ will take care of the rest.

BenchPro™ will either refund the entire purchase price including freight (if by our freight carrier) and tax (if any) or replace the product or component that is defective at our discretion.

Due Diligence: Please, if a chair is found to be defective in a way that could lead to an accident, take it out of service and tag it as dangerous until replacements or replacement parts are received and assembled.

Destruction: Dangerous products should not be put into open waste disposal system until they have been made unusable, so no third party can claim them and be injured.

Product Returns:

1. No return is ever required. (We may ask for an electronic photo in cases where we have not seen the problem before).

2. If the product is purchased but not needed, and returned with freight prepaid, and in new condition with original packing materials, we charge a restocking fee. We also charge a restocking fee for products ordered but cancelled after the product is built. (This is to cover our repackaging, reselling and handling).

Restocking fee schedule:

A. Lincoln and Washington Series in standard sizes and colors will be charged 15%.

B. Custom design and non-catalogue items are non-returnable.
C. No product shall be returned after 60 days.

From the lawyers: In no case shall BenchPro™, its distributors, employees, related divisions, and other entities be responsible for any direct, consequential or indirect damage caused by the use, inability to use, or incorrect use of our products. Our liability is limited to replacement of product or a full refund.

	Arms Add Fixed, Adjustable or ESD Arms.
	Casters Add Braking, Urethane or Glides.
	Bin Box Holder Keep Small Parts Close to You.
	Bottle Holder Convenient Bottle Handling.
	Tool Holder Accommodates any Tool.
